BEAVER Series 90 Flanged Ball Valve

SKU:

Loading...

Features

The Series 90 is a two-piece, full-bore flanged valve built with a robust Double D stem for reliable performance in demanding industrial environments. Certified to API 607 7th edition fire-safe standards, it ensures superior safety in high-risk applications.

Equipped with an ATEX-certified anti-static device and a precision-engineered stem seal system, the Series 90 Ball valve delivers long-lasting, leak-proof operation—making it a versatile and dependable solution for critical industrial processes.

Technical Data

Size : DN15 to DN100

Pressure Rating : Class 150, PN16, PN40

Material : CF8M, CF3M, CF8, CF3, WCB, CN7M, CD3MN, CE3MN, CW12MW, 904L, LCC, Titanium Alloy ( Gr. C-2 )

Seat : PTFE, RTFE, CTFE, TFM1600, MG1241, STFE, PEEK, Delrin, UHMWPE, PCTFE

Handle Type : Flat ( with / without SR Lock ), Oval, T-Bar, Economical Stem Extension

V-Port Option : Yes

Fire Safe : API 607

Also available :

Series 93 Flanged Ball Valve – Size DN125 to DN300

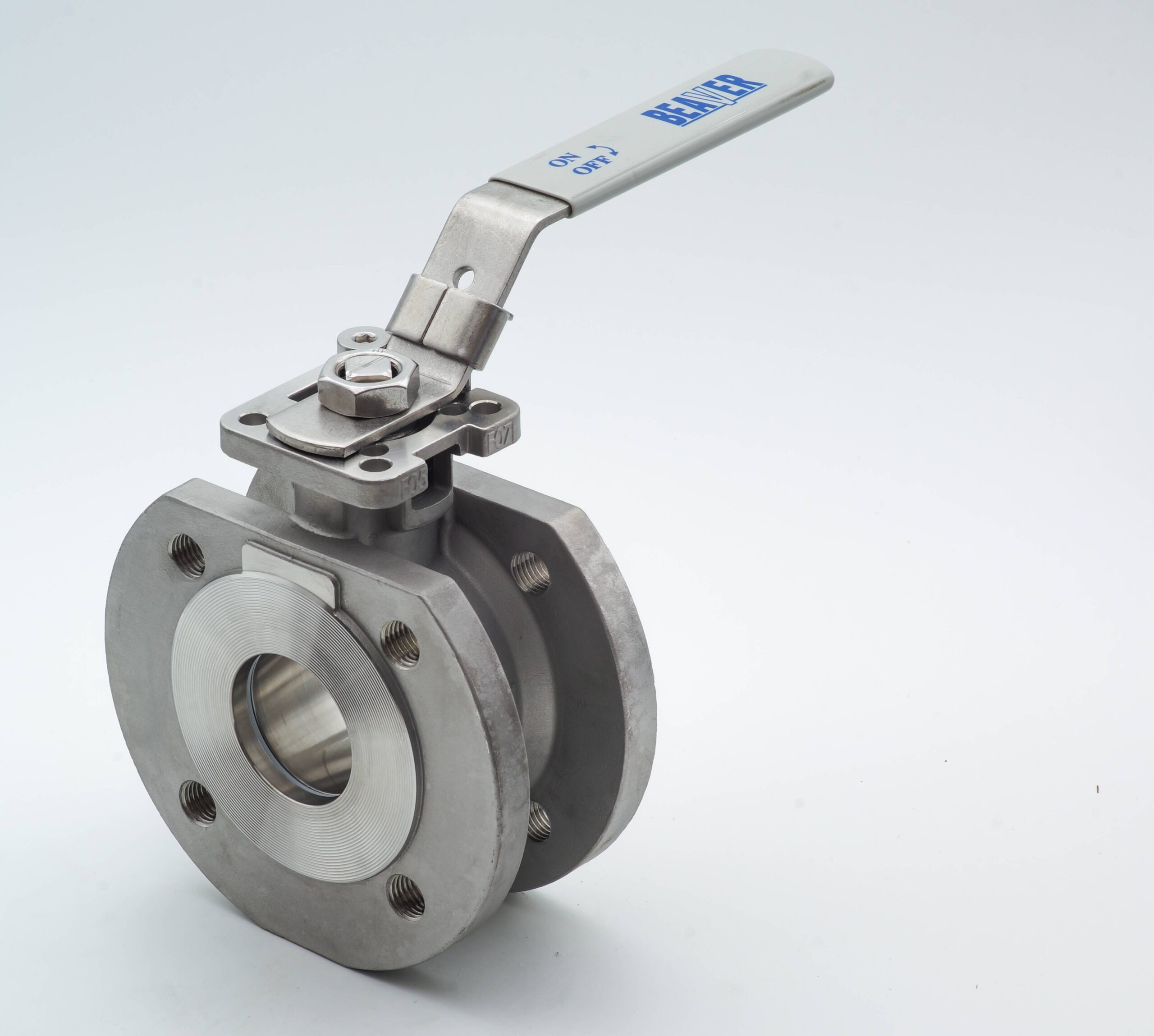

Series 99 Wafer Flanged Ball Valve – Size DN15 to DN150
