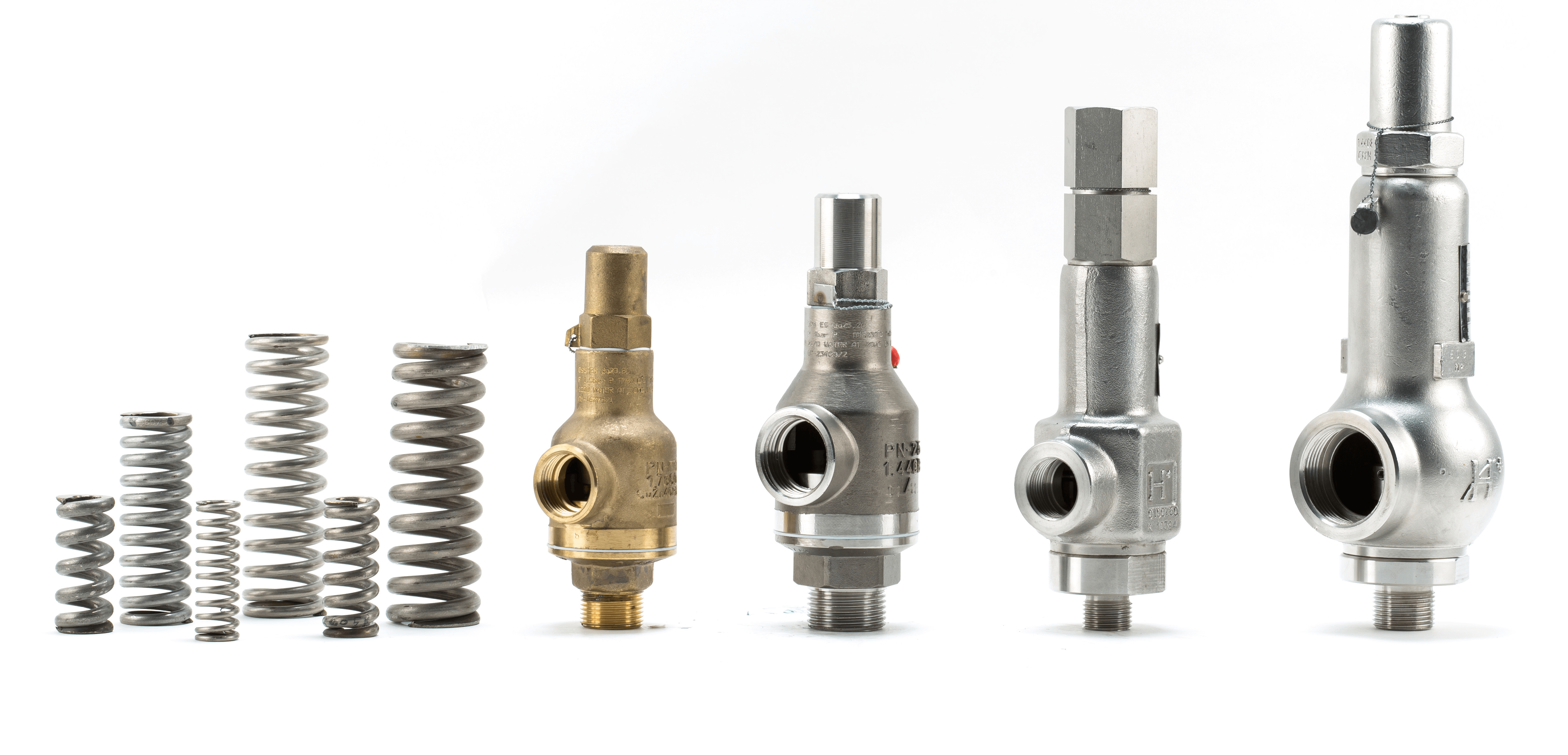

Safety and Pressure Relief Valves

Our safety valves are manufactured to meet the strictest demand of industrial processes to ensure absolute protection for our customers. These valves can be tailored to your needs within a short delivery time.

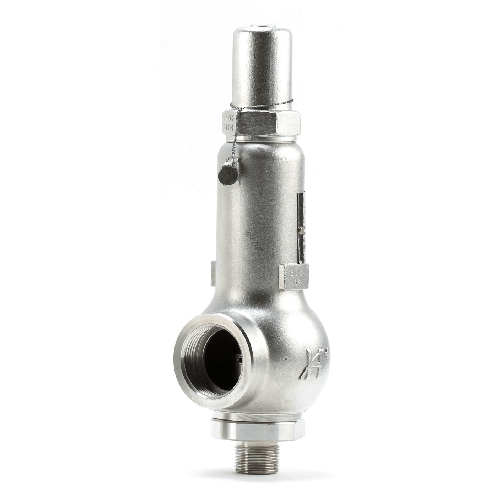

Safety Relief Valves

Type

Safety Relief Valves

Material Options

Bronze, Cast Iron, Stainless Steel, Carbon Steel

Sizes

1/4” to 6” (DN8 to DN150)

End Connections

Threaded, Butt Weld, Flanged to ANSI/ PN/ JIS Standards, Clamp

Pressure Rating

0.8 Bar to 300 Bars

Method of Operation

With or Without Lever

Features

● Conformity to PED 93/23/EC and ATEX 94/9/EC

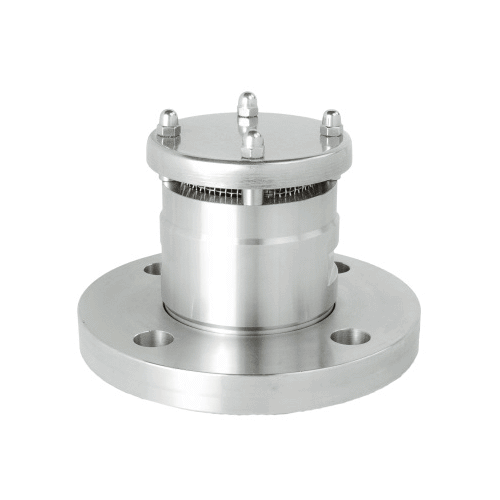

Pressure and Vacuum Safety Relief Valves

Type

Pressure and Vacuum Safety Relief Valves

Material Options

Stainless Steel 316L

Sizes

3/4” to 4” (DN20 to DN100)

End Connections

Threaded, Clamp, SMS, DIN

Pressure Rating

+15mBars to 5Bars / -10mBars to -800mBars

Features

● Conformity to PED 93/23/EC and ATEX 94/9/EC
