Swissfluid Lined Valves are ideally suited for shut-off and flow control of corrosive process media in either liquid, powdery, or gaseous state.

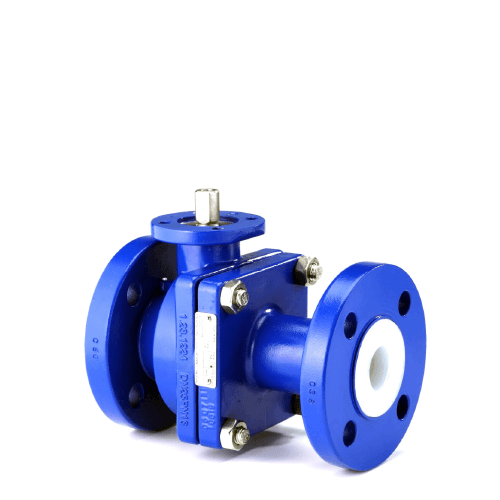

Lined Ball Valve

Body Design

Lined Ball Valve

Material Options (Body)

Carbon Steel or Stainless Steel

Sizes

1/2” to 8” (DN15 to DN200) Reduced Port

End Connections

Flanged to PN16/40 or ANSI300

Pressure Rating

Up to 16 Bars

Method of Operation

Lever Operated or Actuated

Features

● Heavy duty, robust construction, maintenance-free
● Body halves friction-locked (metal-to-metal)
● Bubble-tight shut off throughout full pressure and temperature range
● One-piece ball/shaft, PFA-encapsulated
● Zero stem leakage provided by special stem sealing mechanism
● Integrated ISO 5211 Mounting top flange
● Minimum 3mm PFA Lining

*Special Ball options available

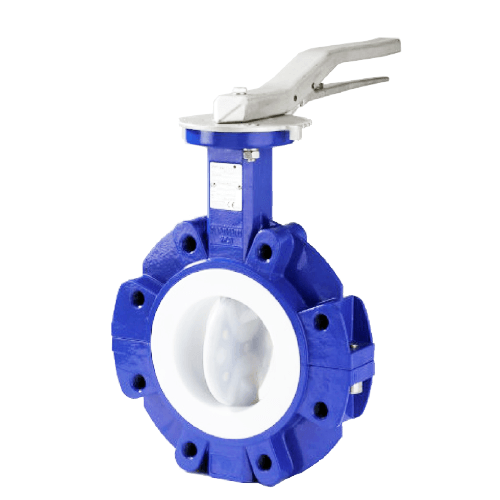

Lined Butterfly Valve

Body Design

Lined Butterfly Valve (Wafer/ Lug)

Material Options (Body)

Carbon Steel or Stainless Steel

Sizes

1” to 42” (DN25 to DN1050)

End Connections

Flanged to PN10/16 or ANSI150

Pressure Rating

Up to 16 Bars

Method of Operation

Lever Operated/ Actuated

Features

● Heavy duty, compact construction, maintenance-free
● Bubble-tight shut off throughout full pressure and temperature range
● Wide selection of high-quality liner and disc materials
● Unique shaft sealing arrangement

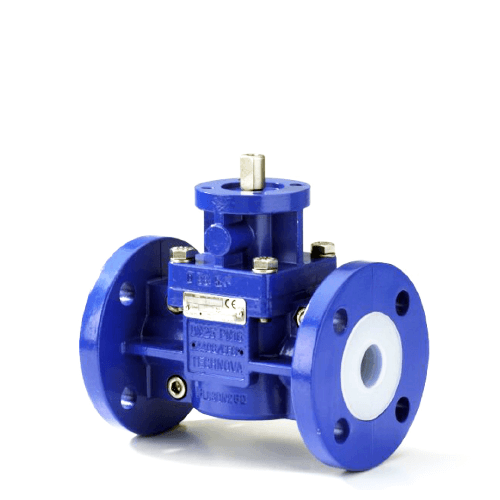

Lined Plug Valve

Body Design

Lined Plug Valve

Material Options (Body)

Carbon Steel or Stainless Steel

Sizes

1/2” to 8” (DN15 to DN200)

End Connections

Flanged to PN16

Pressure Rating

Up to 16 Bars

Method of Operation

Lever Operated/ Actuated

Features

● Heavy duty, compact construction, maintenance-free
● Bubble-tight shut off throughout full pressure and temperature range
● Wide Selection of high-quality liner and disc materials
● Unique shaft sealing arrangement

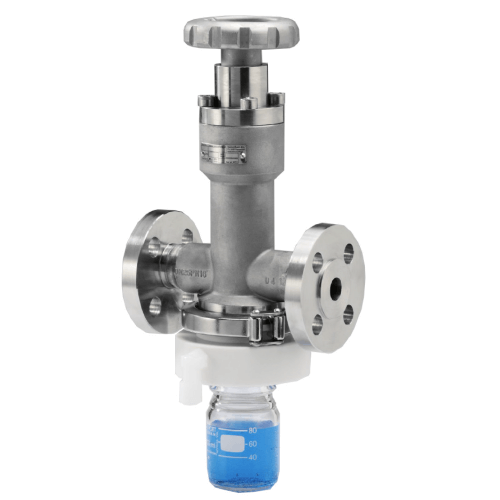

In-Line Sampling Valve

Body Design

In-Line Sampling Valve

Material Options (Body)

Stainless Steel

Sizes

1/2” to 6”

End Connections

Flanged to PN16/ANSI150

Pressure Rating

Up to 16 Bars

Method of Operation

Spring Return Handwheel/ Actuated/ Deadman Lever

Features

● PFA Lined
● Dead-space free design
● Full Port
● High Safety through double cone design
● Ease of Cleaning
● Sampling under pressurized conditions, without any process interruptions
● Minimum 3mm PFA Lining
