Check Valves

Beaver Contromatic > Our Products > Flow Control > Check Valves

Check Valves utilize fluid back pressure to function and they are utilized for their ease of installation and compactness. In addition, their high flow capacities and automatic operation make it a cost-effective solution for some processes.

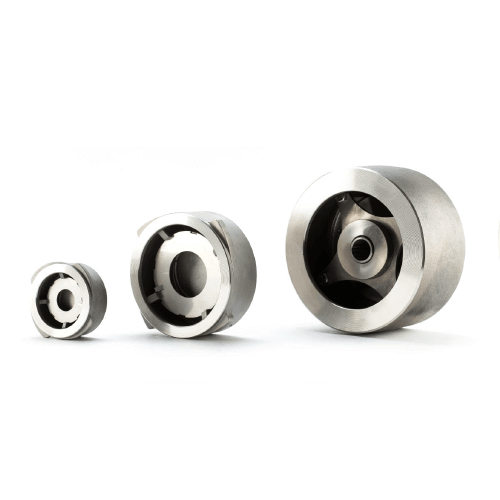

Disc Check Valve

Body Design

Disc Check Valve

Material Options (Body)

Carbon Steel or Stainless Steel 316, Polypropylene, PTFE

Sizes

1/2” to 8” (DN15 to DN200)

End Connections

ANSI 150-900, PN10-160

Pressure Rating

Up to PN160

Method of Operation

Automatic: Spring loaded

Features

● Ease of installation and maintenance
● Multi-directional installation, even with downwards flow
● Usable as vacuum breaker, overpressure and bottom valve
● Low head losses
● Metal seated

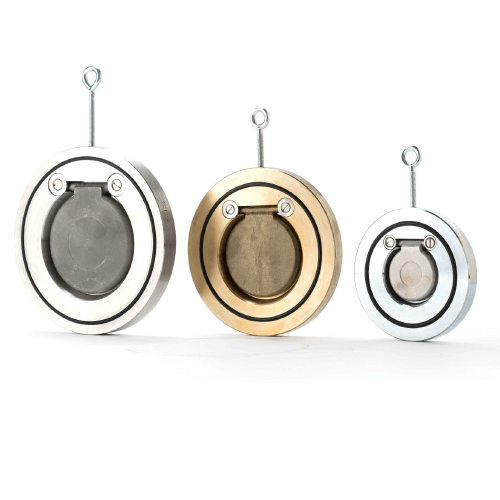

Swing Check Valve

Body Design

Swing Check Valve

Material Options (Body)

Carbon Steel, Stainless Steel 316 or Alu-bronze

Sizes

1-1/2” to 32” (DN40 to DN800)

End Connections

PN6 to PN25/ ANSI 150RF

Pressure Rating

Up to PN40

Method of Operation

Automatic: Uni-directional flow

Features

● Ease of installation and maintenance
● Light weight and small face-to-face
● Self- centering
● Low head losses
